Before

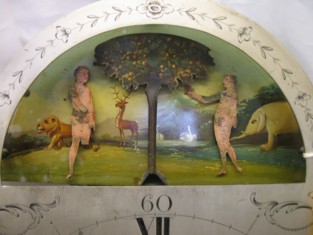

After

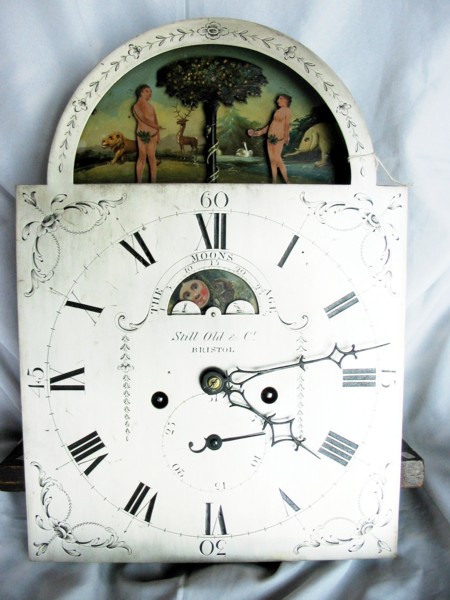

Dial and automate work
Due to the condition of the brass and to conserve the original paintwork I decided to replace both Adam and Eve using the existing ones as templates, along with Adam's new arm and to make a complete serpent and collet as this was missing. I designed and manufactured automate driving levers. Then made new driving lever to operate the age of the moon dial nags head and lever.

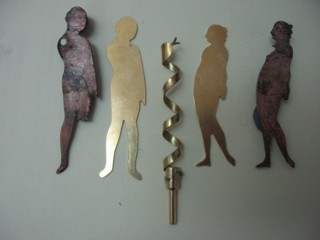

New Automata Parts

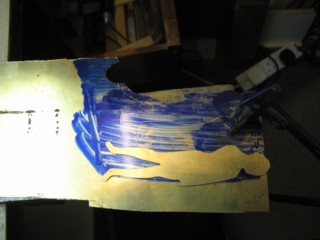

Adam partly cut out with Eve beside

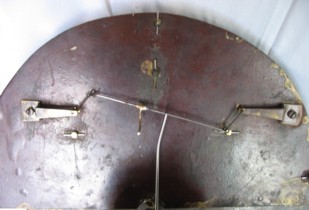

Control linkage to drive automata work, there was an existing hole in the pallet arbor for the driving lever.
The new nags head and lever to drive the moon age wheel.
